Ultra Mini Dome PIR Sensor Module

₹153.00

  •  Operating Voltage Range: DC4.5-20V
  • Static current: <60uA
  • Output level: High 3.3V / Low 0V
  • Trigger: repeatable trigger (default)
  • Delay time: Default 8S + -30%
  • PCB Dimensions: 10 x 23mm
  • Induction angle: <100 degree cone angle
  • Induction distance: 3 meters
  • Working temperature: -20 – +80 degrees
  • Sensor Lens Dimensions: Diameter: 10mm (default)
Add to Wishlist
Add to quote
Category:
Spread the love

Description

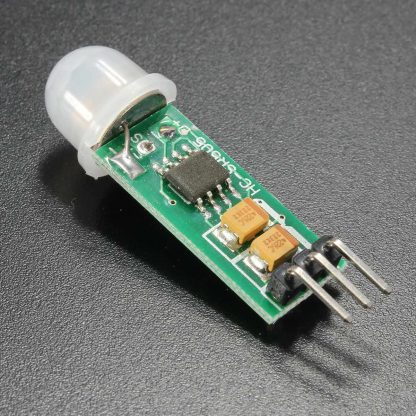

HC-SR505 small body sensing module is based on infrared technology, automatic control products, high sensitivity, high reliability, ultra-small, ultra-low-voltage operation mode. Widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.
