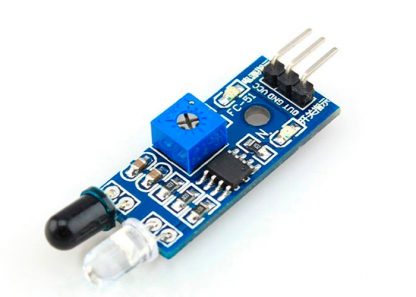

Infrared Proximity Module – Obstacle Detector


  • Supply Voltage – 3.3V to 5V
  • Detection Range – 2 ~ 80 cm (Adjustable by turning potentiometer)
  • Detection Angle ~ 35 Deg
  • On-board LM393 voltage comparator IC
  • Digital Out for MCU interface
  • Onboard LED for Power and Detection
Spread the love


IR Infrared Obstacle Avoidance Sensor Module has a pair of infrared transmitting and receiving tubes. When the transmitted light waves are reflected back, the reflected IR waves will be received by the receiver tube. The onboard comparator circuitry does the processing and the green indicator LED comes to life.

The module features a 3 wire interface with Vcc, GND and an OUTPUT pin on its tail. It works fine with 3.3 to 5V levels. Upon hindrance/reflectance, the output pin gives out a digital signal (a low-level signal). The onboard preset helps to fine tune the range of operation, effective distance range is 2cm to 80cm.
