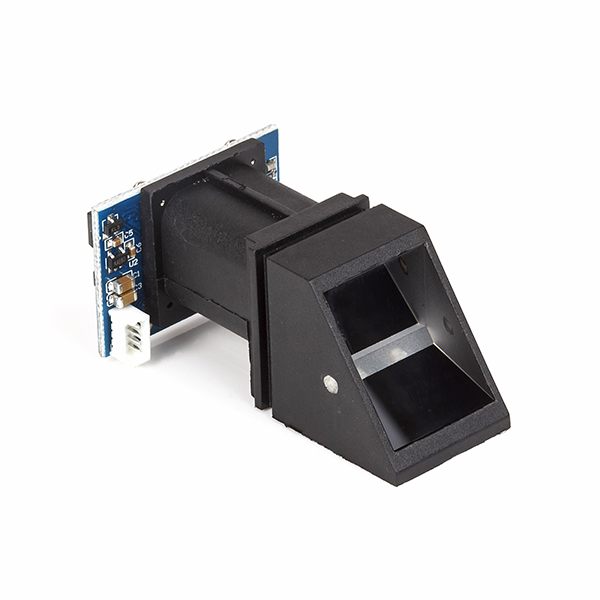

R305 – Fingerprint Module – TTL + Serial – Output

₹1,951.00

  • The R305 fingerprint sensor module provides TTL UART interface for direct connection to microcontroller UART or to the PC using USB serial adapter. It can interact directly with 3.3 V and 5 V microcontrollers.
  • The user can store fingerprint data inside the module. The module can then be configured for identifying the person.
  • Wide working voltage : 3.6 V DC to 6.0 V DC
  • Current requirement: 90 mA
  • Dimension : 55 x 32 x 21.5mm
  • Baud rate : 4800 to 115200 bps
  • Corner pin is Vcc – +5V,
  • Next is GND – circuit gnd.
  • Next is TXD – connect to controller RXD.
  • Final is RXD – connected to controller TXD
Add to Wishlist
Add to quote
Category:
Spread the love

Description

This is a fingure print sensor module with TTL UART interface for direct connections to microcontroller UART or to PC through MAX232 / USB-Serial adapter. The user can store the finger print data in the module and can configure it in 1:1 or 1: N mode for identifying the person.The FP module can directly interface with 3v3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC serial port.

Optical biometric fingerprint reader with great features and can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
