Description
- Connect the input dc supply to the input 2-way connector.
- Set the output voltage by setting the potentiometers.
- The dc regulated output is available on the output 2-way connector.

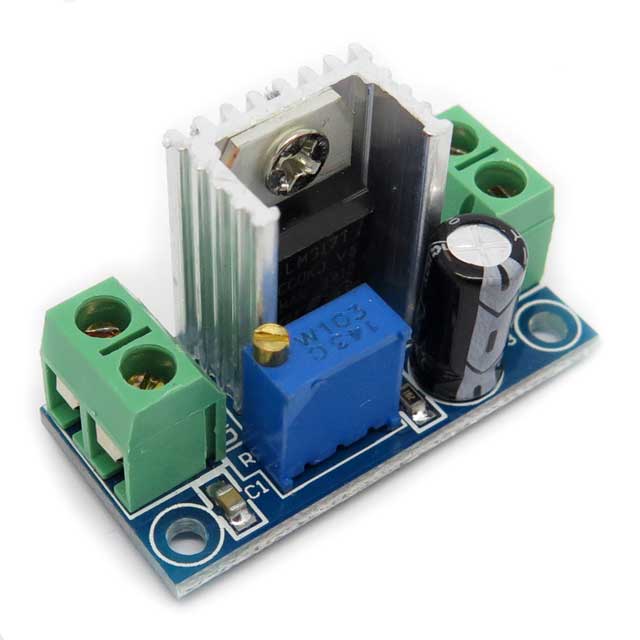

LM317 Adjustable Voltage Regulator Power Supply Module
₹100.00
- The LM317 device is an adjustable 3-terminal positive voltage regulator. It is capable of delivering more than 1.5 Amp current over an output voltage range of 1.25 to 37 Volts.
- The LM317 requires only 2 resistors to set the output voltage. These 2 resistors are available in the form of potentiometers in the module for the convenience of the user.
- The module also has onboard input and output filter capacitors.
- There are 2 set of 2-way connectors for input and output dc voltages.
